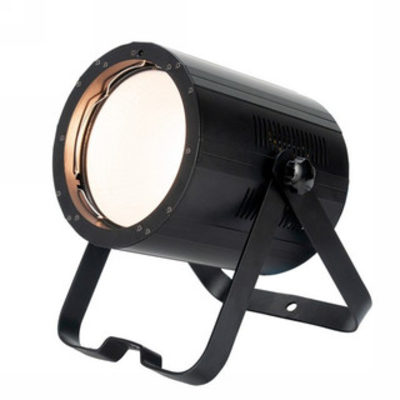

The ADJ COB Cannon Wash DW ST is a shorter version of the popular COB Cannon Wash fixture. It uses advanced Warm White / Cool White COB (Chip On Board) technology allowing for a powerful LED engine to be placed in a small amount of space. The result is a high output, smooth color mixing LED Par with no WW/CW shadows. Designed for mobile or permanent wash lighting of stages, clubs, dance floors & churches. The COB LED engine on the COB Cannon Wash DW ST is a dual WW/CW 2-In-1). It also doubles as an uplight with its scissor yoke that act as legs to set the fixture upright to wash walls & ceilings. The COB Cannon Wash DW ST comes in a black casing & has massive 80-degree beam angle. Easily replaceable 40-degree & 50-degree lens are included so that the beam angle may be changed. It has 6 DMX Channel modes for programming flexibility, built-in color macros & 5 selectable Dim Curves. The fixture has many pro features such as: 0-100% electronic dimming, strobe/pulse effect, Flicker Free operation, 3-pin & 5-pin DMX & power Con power daisy-chaining, & a 4-button DMX display. COB Cannon Wash DW ST may run in its st&-alone mode from built-in programs, sound actively or from a DMX controller. Technische Daten OPTICAL: Light Source: 1x 150-Watt COB (Chip on Board) Warm White/ Cool White LED (2-IN-1) - rated at Approx. 50, 000 hrs. CRI: Over 90 Light Output: 891 LUX @3M (CW + WW @ 40-degree beam), 711 LUX @3M (CW + WW @ 50-degree beam), 410 LUX @3M (CW + WW @ 80-degree beam) 80-degree beam angle
Includes:: lens kit to change to 40-degrees or 50-degrees beam angle CONNECTIONS: 3-pin & 5-pin connectors for DMX linking power Con AC IN/OUT to daisy chain power (up to 5 fixtures) CONTROL: Variable white control: 3200K
- 6400K 6 DMX Channel modes (1, 2, 3, 4, 5, 6 Ch.) 8 warm white / cool white built-in color macros 4-button digital DMX display on rear panel Compatible with wireless remote control (sold separately) LED pulse & strobe effect Electronic Dimming: 0
- 100% 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre) Refresh Rate:1 K Hz
Features: Flicker Free operation (No flickering on camera) Use as Wash/par or Pixel Mapped for a stunning visual effect Scissor yoke allows fixture to be mounted on truss or set on the ground Optional Barn Doors (BAR001) sold separately Run all night
- No duty cycle ELECTRICAL: Auto sensing power supply: AC 100V/60 Hz
- 240V/50 Hz Power Draw: 132W max Daisy chain up to 5 fixtures maximum
Dimensions / WEIGHT:
Dimensions (Lx Wx H): 13" x 10" x 7.5" / 330x 256x 190mm (with bracket); 8.75" x 7.5" x 7.5" / 218.5x 190x 190mm (without bracket) Weight: 9 lbs. / 4.1 kg.
