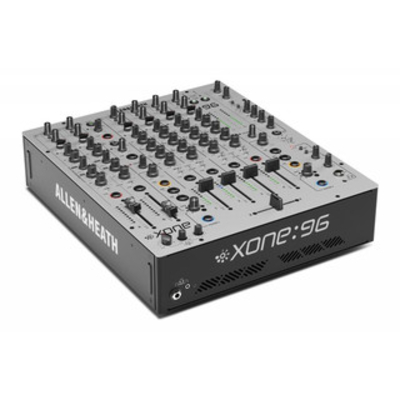

ALLEN&HEATH XONE 96 DJ-Mixer
Xone:96. The long-awaited follow-up to a genuine club classic. A new, uncompromising analogue DJ mixer, destined to be the heart of your creativity, Xone:96 takes the legendary soul of the acclaimed Xone:92 and redelivers it, enhanced, and with state-of-the-art digital connectivity. It´s all here. The huge, detailed, space-shaking analogue sound that only Xone delivers. A refined, precision 4-band EQ. Unrivalled dual Xone:VCF filters with CRUNCH harmonic distortion. And a dual 32-bit USB soundcard (24 Channels @ 96kHz) with Traktor Scratch certification right out of the box. Xone:96 lets you connect your whole rig, from laptops and turntables, to pedals, synths and drum machines. Two dedicated FX sends, four stereo input channels (with 4-Band EQ), two stereo input channels
with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware. Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night. Xone96: You mixed. We listened. Technische Daten Type Analogue Channels 6 + 2 EQ Channel 1-4, 4-Band EQ Channel A-B, 3-Band Parametric EQ USB Soundcards Dual 24 Channel (12 in / 12 out) Hi-Speed USB2.0 / Mac Class Compliant 32bit / 96kHz MIDI over USB Line Inputs 4 x RCA (CH 1-4) 4 x 1/4? TRS (CH A-D) Mono/Stereo Phono Inputs 4 x RCA (CH 1-4) LN/PH Switch for DVS USB Inputs 6 x USB (CH 1-4 + CH A ? CH B) Mic Input 2 x XLR Master Output 1 x XLR (Balanced)
Master 2 Output 1 x 1/4? TRS (Balanced) Booth Output 1 x 1/4? TRS (Balanced) Record Output 1 x RCA (Un-balanced) Master Insert 1 x 1/4? TRS MIDI Out 1 x 5-Pin DIN Send/Return I/O 2 x 1/4? TRS Send 4 x 1/4? TRS Return 1 x LN/Hi-Z Switch (SND1/RTNA) Filter 2 x VCF Filter HPF / BPF / LPF Adjustable Frequency & Resonance Assignable CH 1-4 + CH A-B CRUNCH (Controlled Harmonic Signal Distortion) X-Link 1 x RJ45 Headphones 2 x 1/4? 2 x 3.5mm Split Cue Monitoring Channel Faders 60mm VCA / Replaceable Chanel Meters 9 Segment LED Channel Fader Curve 3 Types X-Fader InnoFADER / 45mm VCA / Replaceable X-Fader Curve 3 Types Earth Ground Terminals x 2 Headroom 20dB AC Mains 100 to 240V AC 50/60Hz Consumption 45W max Mains Adaptor 3 pin IEC socket Height 109mm / 4.3? Width 336mm / 13.25? Depth 410mm /
16.2? Weight 7kg / 15.4 lbs.
with all new 3-Band Parametric EQ + two auxiliary stereo return channels. And a separate master insert for your outboard hardware. Explore new possibilities with a familiar layout of beautifully tactile controls. And rely on the industrial build quality that exceeds the demands of relentless back-to-back performances, night after night. Xone96: You mixed. We listened. Technische Daten Type Analogue Channels 6 + 2 EQ Channel 1-4, 4-Band EQ Channel A-B, 3-Band Parametric EQ USB Soundcards Dual 24 Channel (12 in / 12 out) Hi-Speed USB2.0 / Mac Class Compliant 32bit / 96kHz MIDI over USB Line Inputs 4 x RCA (CH 1-4) 4 x 1/4? TRS (CH A-D) Mono/Stereo Phono Inputs 4 x RCA (CH 1-4) LN/PH Switch for DVS USB Inputs 6 x USB (CH 1-4 + CH A ? CH B) Mic Input 2 x XLR Master Output 1 x XLR (Balanced)
Master 2 Output 1 x 1/4? TRS (Balanced) Booth Output 1 x 1/4? TRS (Balanced) Record Output 1 x RCA (Un-balanced) Master Insert 1 x 1/4? TRS MIDI Out 1 x 5-Pin DIN Send/Return I/O 2 x 1/4? TRS Send 4 x 1/4? TRS Return 1 x LN/Hi-Z Switch (SND1/RTNA) Filter 2 x VCF Filter HPF / BPF / LPF Adjustable Frequency & Resonance Assignable CH 1-4 + CH A-B CRUNCH (Controlled Harmonic Signal Distortion) X-Link 1 x RJ45 Headphones 2 x 1/4? 2 x 3.5mm Split Cue Monitoring Channel Faders 60mm VCA / Replaceable Chanel Meters 9 Segment LED Channel Fader Curve 3 Types X-Fader InnoFADER / 45mm VCA / Replaceable X-Fader Curve 3 Types Earth Ground Terminals x 2 Headroom 20dB AC Mains 100 to 240V AC 50/60Hz Consumption 45W max Mains Adaptor 3 pin IEC socket Height 109mm / 4.3? Width 336mm / 13.25? Depth 410mm /
16.2? Weight 7kg / 15.4 lbs.
