BMS 4544 is a powerful 1" professional compression driver that delivers excellent sonic quality in a small package. The BMS exclusive voice coil technology employs light weigh Cooper Clad Aluminium wire wound inside & outside of the Kapton ? former to improve the heat dissipation. This technology dramatically increase the acoustic output & reliability of the drive & minimizes the power compression. The BMS 4544
- 1" compression driver is designed wide variety of applications in high quality professional reinforcement systems & stage monitors. Technische Daten Unique Patented Design 113 d B Sensitivity 1 W / 1 m 1.3 k Hz Crossover Extended high frequency response up to 20 k Hz Small Size & low Weight 44.4 mm Sandwich in- & outside the Voice Coil
...

BMS 4544 is a powerful 1" professional compression driver that delivers excellent sonic quality in a small package. The BMS exclusive voice coil technology employs light weigh Cooper Clad Aluminium wire wound inside & outside of the Kapton ? former to improve the heat dissipation. This technology dramatically increase the acoustic output & reliability of the drive & minimizes the power compression. The BMS 4544
- 1" compression driver is designed wide variety of applications in high quality professional reinforcement systems & stage monitors. Technische Daten Unique Patented Design 113 d B Sensitivity 1 W / 1 m 1.3 k Hz Crossover Extended high frequency response up to 20 k Hz Small Size & low Weight 44.4 mm Sandwich in- & outside the Voice Coil
...

Der kraftvolle 1" Hochtontreiber BMS4545NDL ist für professionelle Anwendungen konzipiert und bietet hervorragende Klangeigenschaften bei äußerst kompakten Abmessungen. Die einzigartigen BMS Ringmembran bildet zusammen mit der kostengünstigen, besonders kräftigen Neodym-Magnetbaugruppe ein effizientes System für verschiedenste professionelle PA-Lösungen. Im Frequenzbereich bis 20 k Hz erreicht der BMS4545NDL überdurchschnittliche Schalldruckwerte. Dabei klingt der BMS4545ND extrem transparent und detailreich und kann dank seines außergewöhnlichen Dynamikumfangs auch vielschichtige Audiosignale konturiert und exakt abbilden. Technische Daten Typ: Hochtöner (Kompressionstreiber): Horndurchmesser: 1" Horndurchmesser: 25, 4 mm Durchmesser Schwingspule: 1, 75" Durchmesser Schwingspule: 44, 4 mm Gesamtdurchmesser: 85 ± 0, 1 mm Durchmesser Lochkreis: 57, 15 mm Tiefe: 48 mm Nennimpedanz: 8 Ohm Nennbelastbarkeit: 80 W Belastbarkeit: 400 W Schalldruck (mit Horn, 1 W / 1 m): 113 d B Frequenzbereich: 500
- 20.000 Hz Empfohlene Übernahmefrequenz: 1.300 Hz Schwingspulenträger: Kapton Membran: Polyester Material Magnet: Keramik Flanschgewinde: 1 3/8"
- 18N Gewinde

...

Der kraftvolle 1" Hochtontreiber BMS4547NDL ist für den professionellen Einsatz konzipiert und bietet hervorragende Klangeigenschaften bei kompakten Abmessungen. Die einzigartigen BMS Ringmembran bildet zusammen mit der kostengünstigen und effizienten Neodym-Magnetbaugruppe ein wirtschaftliches System für unterschiedlichste professionelle PA-Lösungen. Bei einem Frequenzbereich bis 20 k Hz erreicht der BMS4547NDL überdurchschnittliche Schalldruckwerte. Dabei klingt der BMS4547ND extrem transparent und detailreich und bildet dank seines außergewöhnlichen Dynamikumfangs auch vielschichtige Audiosignale konturiert und exakt ab. Technische Daten Typ: Hochtöner (Kompressionstreiber): Horndurchmesser: 1" Horndurchmesser: 25, 4 mm Durchmesser Schwingspule: 1, 75" Durchmesser Schwingspule: 44, 4 mm Gesamtdurchmesser: 85 ± 0, 1 mm Durchmesser Lochkreis: 57, 15 mm Tiefe: 3.5cm Nennimpedanz: 8 Ohm Nennbelastbarkeit: 80 W Belastbarkeit: 450 W Schalldruck (mit Horn, 1 W / 1 m): 113 d B Frequenzbereich: 500
- 20.000 Hz Empfohlene Übernahmefrequenz: 1.200 Hz Schwingspulenträger: Kapton Membran: Polyester Material Magnet: Neodym Anzahl Befestigungslöcher 3 Durchmesser Befestigungslöcher: M5 Durchmesser Lochkreis: 57, 15 mm
...

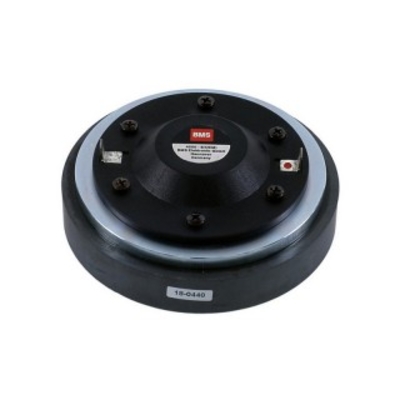

BMS 4550 is a powerful 1" professional compression driver that delivers outstanding sonic quality in a small package. It has an exceptional dynamic range & produces even the most complex music signals with depth & definition. The BMS exclusive voice coil technology employs a light weight Copper Clad Aluminium wire wound inside & outside of the Kapton? former to improve the heat dissipation, dramatically increasing the acoustic output & reliability of the driver while minimises the power compression. The BMS 4550
- 1" compression driver is designed for a wide variety of applications in high quality, high power professional reinforcement systems & stage monitors where low crossover frequency is needed. Technische Daten Unique patented Design 113 d B sensitivity 1 W / 1 m 800 Hz Crossover Extended high frequency response up to 20 k Hz Small Size & low Weight 44.4 mm sandwich in- & outside VC
...

The BMS 4552ND is a powerful 1" professional compression driver that delivers superb sonic quality in a small package. The ...

The BMS 4552ND is a powerful 1" professional compression driver that delivers superb sonic quality in a small package. The ...

BMS 4554 is a powerful 1.4" professional compression driver that delivers outstanding sonic quality in a small package. The BMS exclusive voice coil technology employs a light weight Copper Clad Aluminium wire wound inside & outside of the Kapton? former to improve the heat dissipation, dramatically increasing the acoustic output & reliability of the driver while minimising the power compression. The BMS 4554
- 1.4" compression driver is designed for a wide variety of applications including budget projects requiring 1.4" driver of high sonic quality. The 4554 offers all the benefits of the patented BMS compression driver in a 1.4" format, but at much reduced cost. Technische Daten 1.4" Driver for budget Projects Unique Patented Design 113 d B sensitivity 1 W / 1 m 1.3 k Hz Crossover Extended high frequency response up to 20 k Hz Small Size & low Weight 44.4 mm Sandwich in- & outside Voice Coil
...

BMS 4554 is a powerful 1.4" professional compression driver that delivers outstanding sonic quality in a small package. The BMS exclusive voice coil technology employs a light weight Copper Clad Aluminium wire wound inside & outside of the Kapton? former to improve the heat dissipation, dramatically increasing the acoustic output & reliability of the driver while minimising the power compression. The BMS 4554
- 1.4" compression driver is designed for a wide variety of applications including budget projects requiring 1.4" driver of high sonic quality. The 4554 offers all the benefits of the patented BMS compression driver in a 1.4" format, but at much reduced cost. Technische Daten 1.4" Driver for budget Projects Unique Patented Design 113 d B sensitivity 1 W / 1 m 1.3 k Hz Crossover Extended high frequency response up to 20 k Hz Small Size & low Weight 44.4 mm Sandwich in- & outside Voice Coil
...

BMS 4555 is a powerful 1.5" professional compression driver that delivers outstanding sonic quality in a small package. The BMS exclusive voice coil technology employs a light weight Copper Clad Aluminium wire wound inside & outside of the Kapton? former to improve the heat dissipation, dramatically increasing the acoustic output & reliability of the driver while minimising the power compression. The BMS 4555
- 1" compression driver is designed for a wide variety of applications including budget projects requiring 1.5" driver of high sonic quality. The 4555 offers all the benefits of the patented BMS compression driver in a 1.5" format, but at much reduced cost. Technische Daten 1.5" Driver for Budget Projects Unique patented Design 113 d B sensitivity 1 W / 1 m 1 k Hz Crossover Extended high frequency response up to 20 k Hz Very small Size & low Weight 44.4 mm Voice Coil
...
