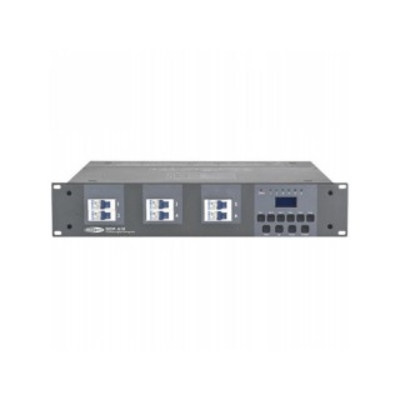

Showtec DDP-610M 6-Kanal Digital Dimming Pack

Product Description

The DDP-610M is a robust & reliable dimming pack which can be used for both touring as well as installation applications. It offers 6 dimmer channels which can be loaded up to 10 Amp each. Each channel is completely patchable. Furthermore each channel can set its dedicated dimming curve (linear, switch, square). In case of any power- or DMX failure the DDP-610M will hold as its latest position ensuring that your venue or gig never will be in the dark. Furthermore up to 12 chases can be stored & recalled for easy recall or st&-alone applications. All functions can be set & controlled by the compact but easy to operate LCD Display. Technische Daten Input voltage: 230VAC, 50/60 Hz, single phase connection 400VAC, 50/60 Hz, 3-phase connection Channel output: Max. 10 Amp each channel, Total 60A Control: DMX, Local Contral, Built-in chase DMX Channels: 6 Mode: Dim or Switch Protection: Short circuit, temperature, overload Power connection: Terminal Power Output: 16 Pole Multipin Monitor: Control LED per channel, LCD Display Dimensions: 483x 380x 90 mm (Lx Wx H) (Rubber feet removed) 483x 385x 94 mm (Lx Wx H) (incl. rubber feet) Weight: 12kg IP-rating: IP-20
